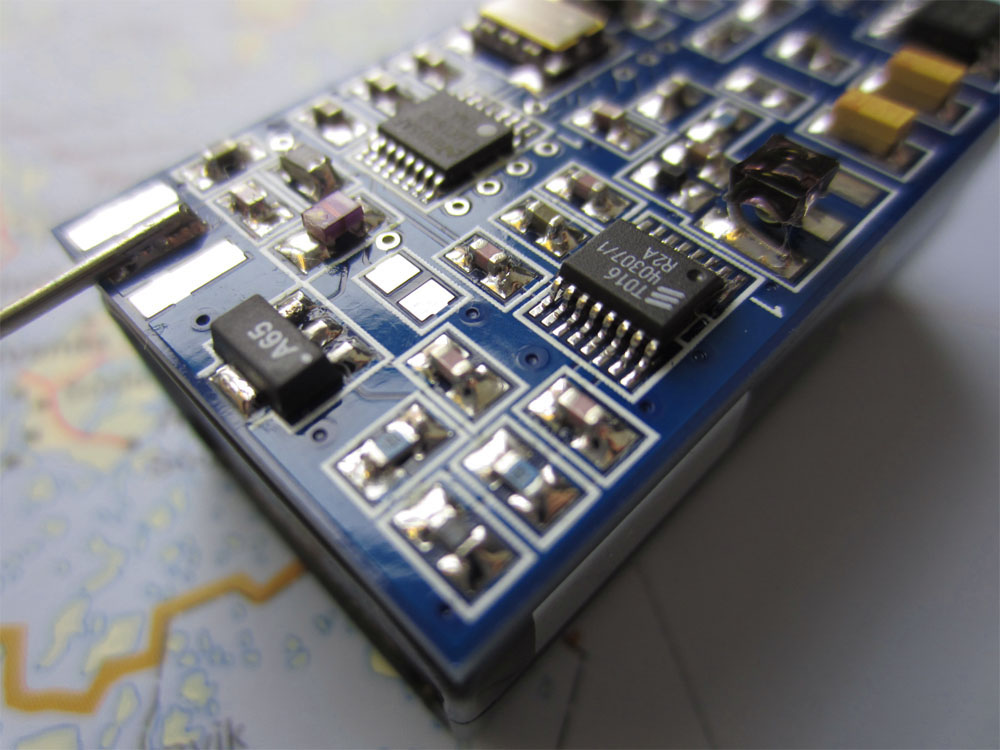

Antenna side of the jammer.

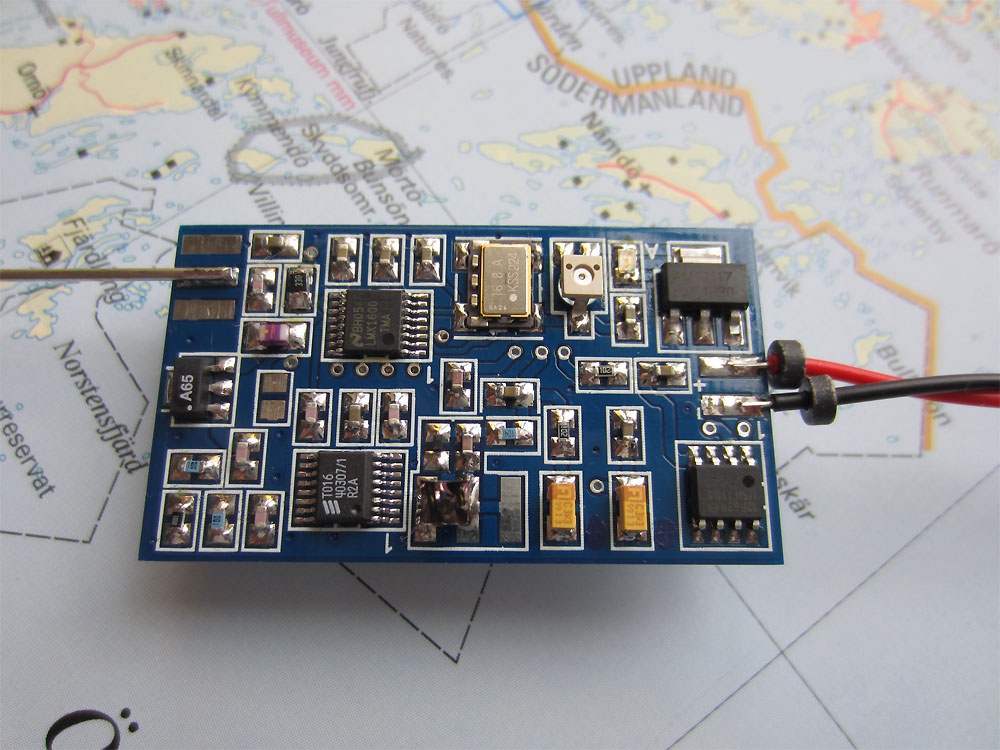

Top view. Notice the ferrite rings around the power cables. They attenuate RF on the power line.

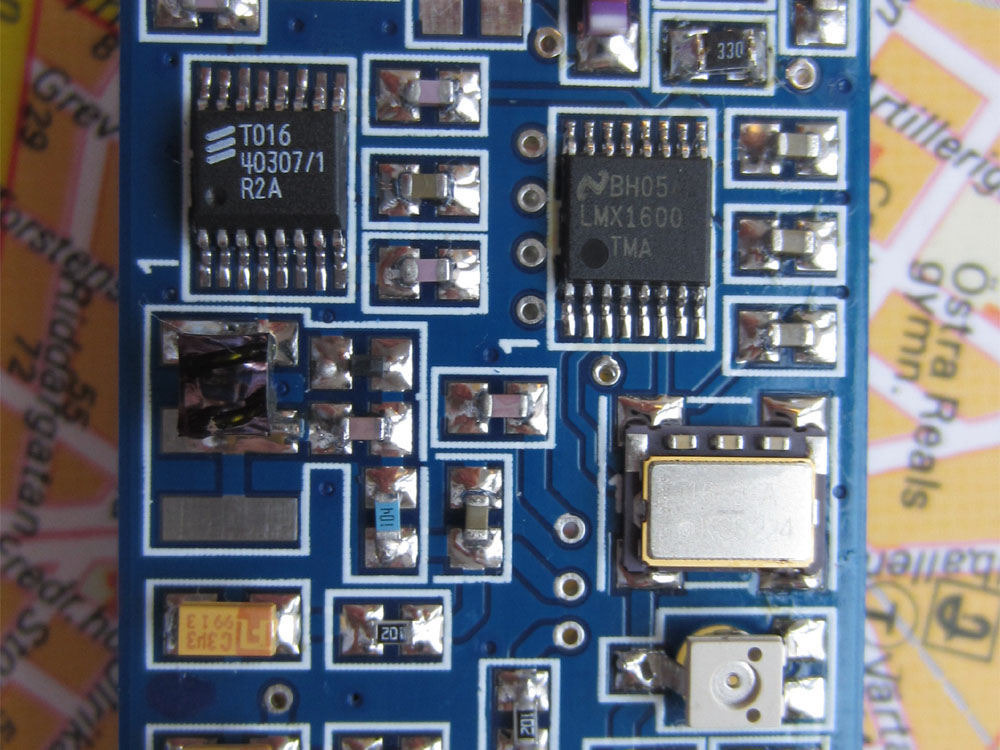

Details of component placement. LMX1600, PBL40307, crystal and pot P1.

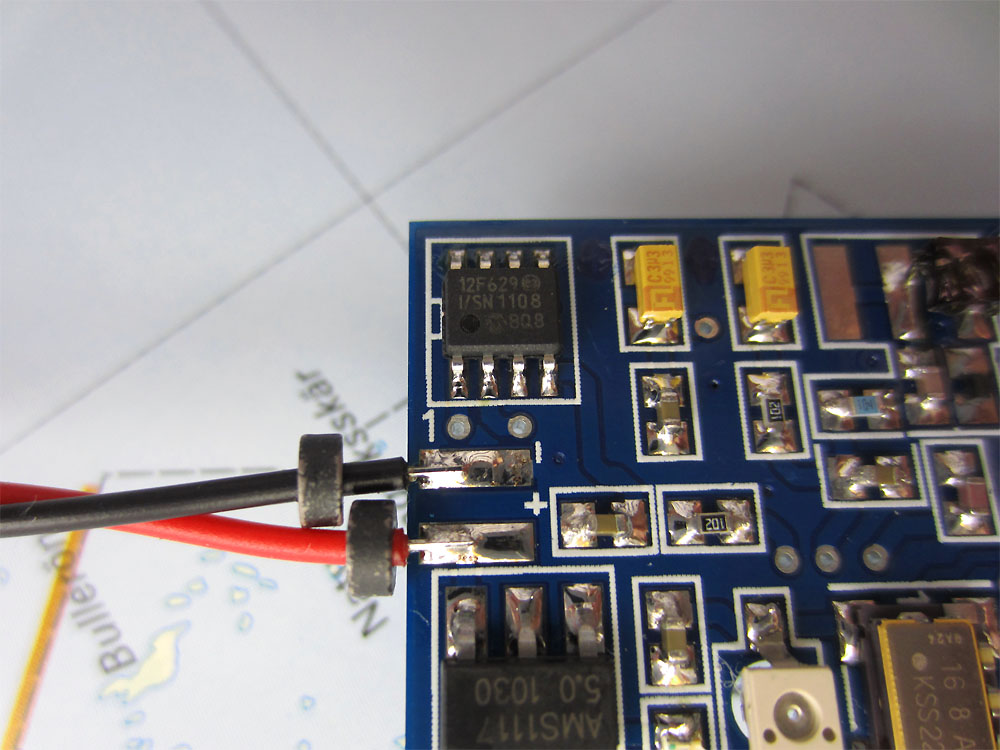

Details about the PIC12F629 placement.

Small size PCB with a strong transmitter.

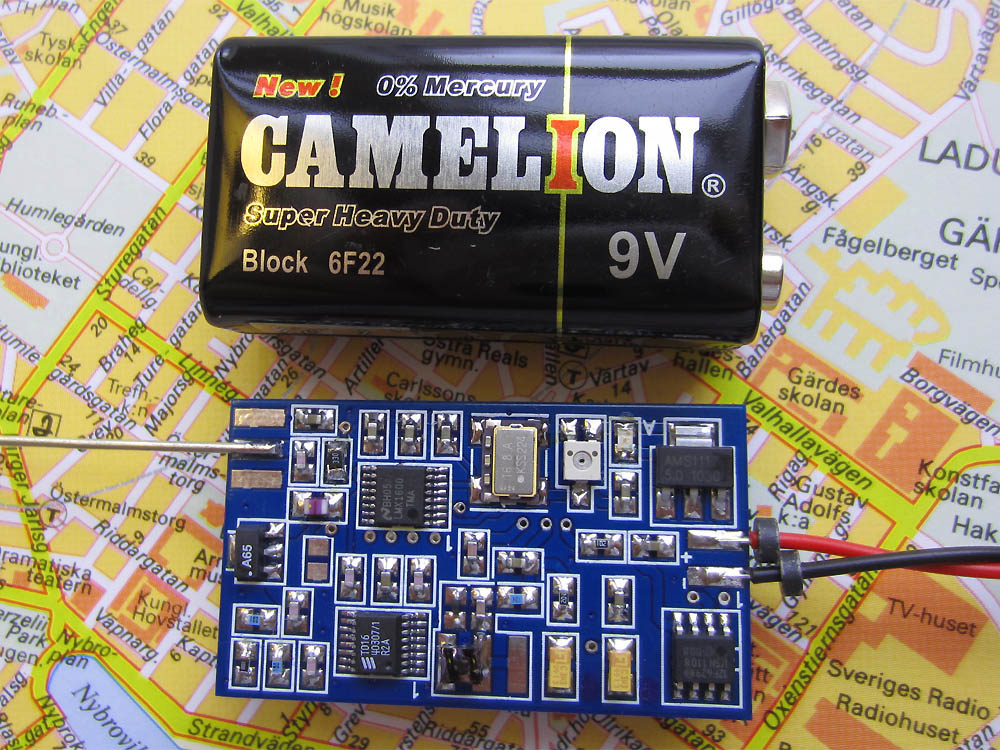

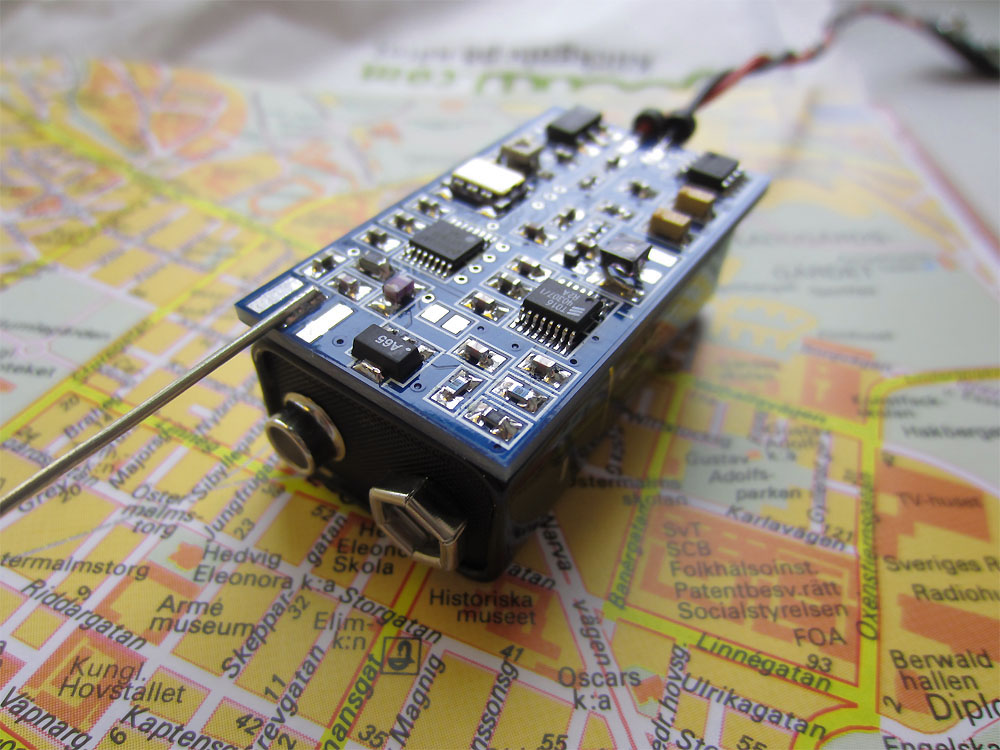

Same size as standard 9V battery.
