Introduction to Fundamental Crystal Oscillators
This side will explain some different Crystal Oscillators.
All contribution to this page are most welcome!

Jump to :
  • Introduction to Fundamental Crystal Oscillators 1 - 21 MHz
  • Series Resonant Circuit
  • Parallel Resonant Circuit
  • Introduction to Overtone Crystal Circuits
  • Third Overtone Oscillator Circuit
  • Fifth Overtone Oscillator Circuit
  • Ovetone Crystal Oscillator for up to 200Mhz




    Introduction to Fundamental Crystal Oscillators 1 - 21 MHz
    Crystal units manufactured by Quartslab Marketing Ltd for use over the frequency range 1 to 21 MHz use an AT cut quartz plate and operate in their fundamental mode. Crystal units may be specified for operation in either a series or parallel resonant condition. This operating condition should be correctly specified when ordering or the crystal unit will not operate on the correct frequency. Typically, over the frequency range of 1 - 21 MHz there may be between 2 and 15 kHz difference between the parallel resonant and series resonant conditions, the series resonant condition being lower in frequency.

    If parallel resonance is required, it is necessary to specify a load capacitance for the Crystal. This capacitance is not related to any capacitance present in the crystals or the circuit but refers to the load capacitance used when crystals are measured in standard test sets. The preferred value of capacitance is 30 pF but crystals can be manufactured for other values.

    These circuits are designed for non-critical adjustment and operation with easily available components. In each case, an output of at least 500 millivolts RMS is available across a load of 1000 ohms in parallel with 15 pF. The circuits are suitable for use with supply voltages from 5 to 10 volts DC. Over this voltage range frequency stabilities of 0.001% (10 ppm) should be achieved.

    Please note that where no load capacitance is specified for fundamental crystals we supply them calibrated for a 30 pF load and although the circuit is shown as suitable for crystals at 0.95 MHz (950 kHz) we do not offer crystals below 1.5 MHz.


    Series Resonant Circuit

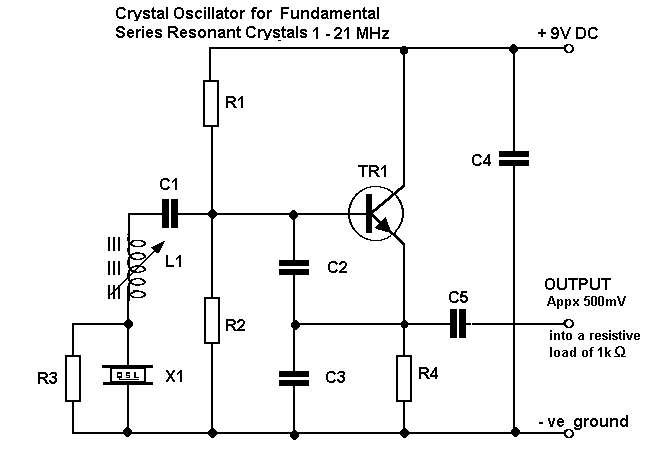

    Oscillator Circuit for fundamental series resonant crystals


    R1, R2, R3, R4 See Below
    C1, C2, C3, See Below
    C4 0.01µF
    C5 47pF
    TR1 BC108 or similar
    L1 Close wound with 37SWG enamelled wire on 7.62mm diameter former with Neosid F25 coil



    Frequency of X1 MHz R1 R2 R3 R4 C1 C2 C3 L1
    0.95 -1.65 68k 33k * 2.2k .0047mf 680 pF 680 pF 140 Turns
    1.6 - 2.5 68k 33k * 2.2k .0047mf 680 pF 680 pF 65 Turns
    2.5 - 4.0 68k 33k 560 ohm 1.5k .0047mf 220 pF 220 pF 65 Turns
    4.0 - 6.0 15k 6.8k 560 ohm 1.5k .001mf 270 pF 270 pF 40 Turns
    6.0 - 10.0 15k 6.8k 560 ohm 1.5k 150 pF 220 pF 220 pF 26 Turns
    10.0 - 15.0 15k 6.8k 560 ohm 680 ohm 100 pF 220 pF 220 pF 16 Turns
    15.0 - 21.0 15k 6.8k 560 ohm 680 ohm 100 pF 100 pF 100 pF 10 Turns














    Parallel Resonant Circuit

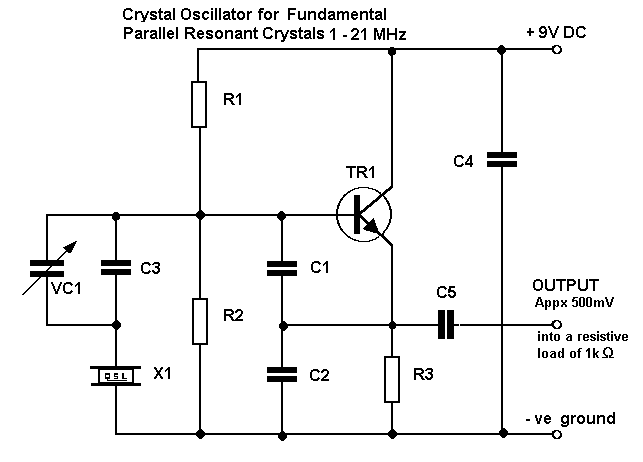

    Parallel resonant oscillator circuit


    R1 100K
    R2 33K
    R3 See below
    C1, C2, C3 See below
    C4 . 01µF
    C5 47pF
    VC 60pF Trimmer
    TR1 BC108 or similar



    Frequency of X1 MHz R3 C1 C2 C3
    0.95 -3.0 3.3k 220 pF 220 pF not used
    3.0 - 6.0 3.3k 150 pF 150 pF 33 pF
    6.0 - 10.0 2.2k 150 pF 150 pF 33 pF
    10.0 - 18.0 1.2k 100 pF 100 pF not used
    10.0 - 18.0 1.2k 100 pF 100 pF not used
    18.0 - 21.0 680 ohm 68 pF 33 pF not used














    Introduction to Overtone Crystal Circuits

    With overtone operation of crystals, the overtone frequency is not an exact multiple of the fundamental frequency and the circuit design must ensure that the crystal does in fact operate at the overtone frequency.

    In order to be certain of correct operation, it is preferable to specify series resonant crystals, and to provide external circuit elements to prevent oscillation at the fundamental frequency. Where parallel resonant overtone crystals are required a load capacitance must be specified

    On following pages circuits are shown for 3rd overtone crystals 15 to 65MHz and 5th overtone crystals 60 to 105 MHz operating in their series resonant mode. In both of these circuits with the crystal short circuited, the oscillator should operate at or near the required frequency. With the crystal in circuit L1 should be adjusted for either (a) minimum voltage across the crystal or (b) for the exact frequency required. Ideally, these two points would coincide but they rarely will due to the need for a manufacturing tolerance on crystal frequency.

    If L1 is of incorrect size it is possible for the oscillator to operate on a different order of overtone, for this reason it is important to accurately check the output frequency.

    Under no circumstances should a tuned circuit at the crystal overtone frequency be included in the collector circuit of TR1 as this configuration will result in oscillation not controlled by the crystal. However it is possible to include a tuned circuit at that point which is twice or three times the crystal frequency. It is then possible to extract from the collector the harmonics of the crystal frequency.

    Unless otherwise specified we supply 3rd overtone crystals between 21 and 60 MHz. 5th overtone between 60 and 126 MHz and 7th between 126 and 175 MHz.



    Third Overtone Oscillator Circuit

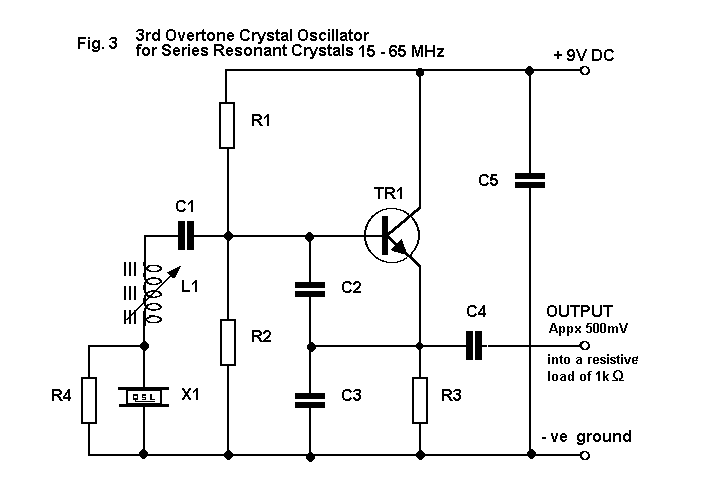

    3rd overtone oscillator circuit


    R1 10K
    R2 4.7K
    R3 470 Ohm
    R4 560 Ohm
    TR1 BF180 or similar
    C1 C2, C3, C4, See Below
    C5 0.001mF
    L1 wound is on a 7.62 diameter former with Neosid F29 core



    Frequency MHz C1 C2 C3 C4 L1
    15 - 20 100 pF 100 pF 68 pF 33 pF 12 Turns 30SWG Close Wound
    20 - 26 100 pF 100 pF 68 pF 33 pF 8 Turns 30SWG Close Wound
    25 - 31 100 pF 68 pF 47 pF 33 pF 8 Turns 30SWG Close Wound
    30 - 43 100 pF 68 pF 47 pF 33 pF 6 Turns 30SWG Close Wound
    42 - 55 100 pF 68 pF 47 pF 33 pF 5 Turns 30SWG 6 mm long
    48 - 65 68 pF 33 pF 15 pF 15 pF 5 Turns 30SWG 6 mm long














    Fifth Overtone Oscillator Circuit

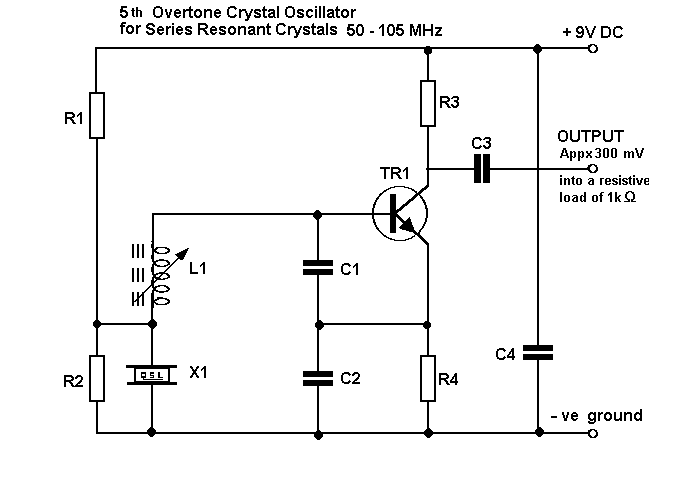

    5th overtone oscillator circuit


    XL1 Ri L1
    50-70 MHz 2.7 K 7 Turns 6mm long
    60-85 MHz 2.7 K 5 Turns 5mm long
    80-105 MHz 1.2 K 3 Turns 6mm long.

    R2 470 ohm Cl l2pF
    R3 330 ohm C2 18pF
    R4 470 ohm C3 33pF
    C4 1000 pF

    VT1 8F180, SE1O1O or similar.

    L1 Wound with 20 B & S enameiled wire on 7.62 mm diameter former with Neosid F29 Core.

    Under no circumstances should a tuned circuit at the crystal overtone frequency be included in the collector circuit of VT1, as this configuration will result in oscillation not controlled by the crystal.


    OVERTONE CRYSTAL OSCILLATOR FOR UP TO 200 MHz

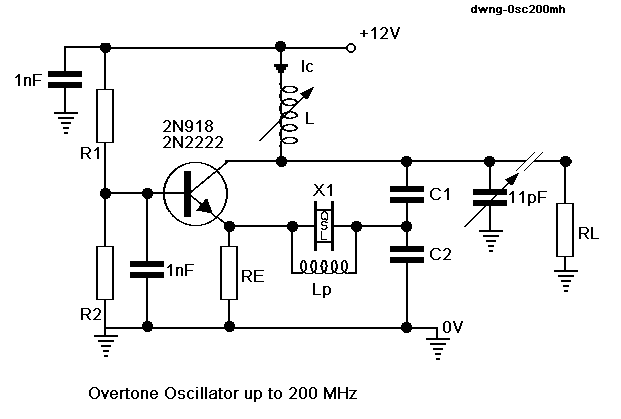

    Oscillator for use up to 200 MHz



    Frequency C1 C2 Ic (mA) RE (Ohms) RL (Ohms) Lp (mH)
    75 8 pF 100 pF 25 510 470 0.25
    120 8 pF 50 pF 25 390 300 0.1
    150 5 pF 25 pF 5 1.1k 600 0.08
    200 3 pF 20 pF 5 1.1k 600 0.05









    The above diagram shows a true series resonant oscillator circuit suitable for use up to 200 MHz

    It is recommended that transistors for use in this circuit have a high DC gain (HFE) and a low base resistance (RBB). Also ensure that the transit frequency is at least ten times that of the oscillator frequency.
